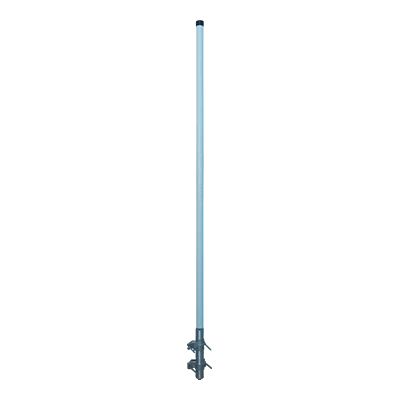

Antenna А10-868

The A 10-868 antenna is specifically designed to work with radio modems in 868 MHz data transmission systems in civil radio systems. A modification of the A 10-868-T5 antenna with an electric beam tilt of 5 degrees is used to improve coverage of the near zone. High gain, circular radiation pattern in the horizontal plane, reinforced design – allow it to be used as a base antenna in point-to-multipoint systems. The antenna cover is made of fiberglass. The antenna is DC grounded. Antenna can be mounted either on a mast with a diameter of 35-70mm or on a wall.

Category:

No tags found

Description

The A 10-868 antenna is specifically designed to work with radio modems in 868 MHz data transmission systems in civil radio systems.
A modification of the A 10-868-T5 antenna with an electric beam tilt of 5 degrees is used to improve coverage of the near zone.
High gain, circular radiation pattern in the horizontal plane, reinforced design – allow it to be used as a base antenna in point-to-multipoint systems.
The antenna cover is made of fiberglass. The antenna is DC grounded. Antenna can be mounted either on a mast with a diameter of 35-70mm or on a wall.

Specification

Model A10-868 (A10-868-T5)
Operating frequency range, MHz: 864-876
Gain, dBi: 10
SWR, not worse: 1.5
Polarization: vertical
Permissible power, W: 100
Emission sector in the H-plane (-3 dB): 360
Radiation sector in the E-plane (-3 dB): 150
Impedance, Ohm: 50
Electric beam tilt: -1..-2 (-5)
Lightning protection: yes
Length, mm: 1570
RPU diameter, mm: 30
Weight, kg: 0.9
Permissible wind speed, m/s: 40
Handpiece material and color: white fiberglass
Fasteners on the pipe-mast: 35-70mm
Connector: N-female
Operating temperature range, degrees C: from -50 to +50
