Air Quality Sensor
AQS-10
The AQS-10 monitors temperature, relative humidity, carbon dioxide concentration and the IAQ air quality index, providing a combined view of indoor environmental conditions. It transmits readings over wanwave LPWAN, supporting remote monitoring across buildings, workplaces and other indoor spaces.
Powered by a 3.6 V lithium thionyl chloride battery, the sensor has a battery life of five years and transmission power below 25 mW. Its compact, IP43-rated enclosure measures 125 × 67 × 50 mm and weighs 160 g.
MEASUREMENTS
Temperature, relative humidity, indoor air quality index, CO₂
COMMUNICATION
wanwave LPWAN
POWER SUPPLY
3.6V LiSOCl₂ battery
ENCLOSURE RATING
IP43
Applications
Technical specifications
| Model number | AQS-10 |
|---|---|
| Measurements | Temperature, relative humidity, indoor air quality index, CO₂ |
| Communication interface | wanwave LPWAN |
| Power supply | 3.6V LiSOCl₂ battery |
| Enclosure rating | IP43 |
| Operating conditions | 0°C to +80°C |
| Dimensions | 125 × 67 × 50 mm |
| Weight | 160 g |
| Battery life & conditions | 5 years |
Connectivity & integration

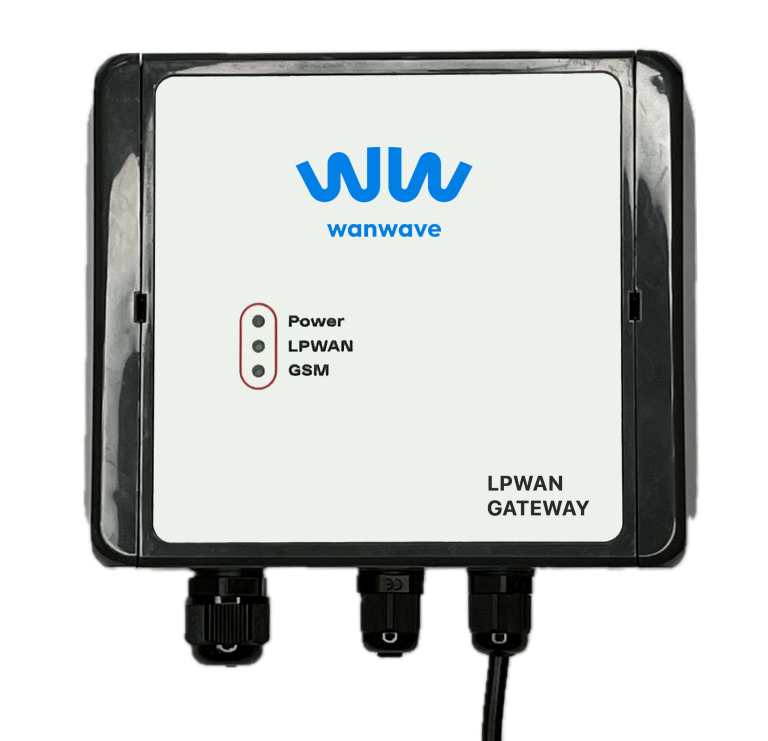

AQS-10 transmits its readings over wanwave’s proprietary network through a compatible wanwave gateway. The gateway forwards the data to wanwave monitoring platforms or your existing IT systems. The sensor operates on battery power; gateway power and uplink requirements depend on the selected model.
Documents
Product datasheet (PDF) →
