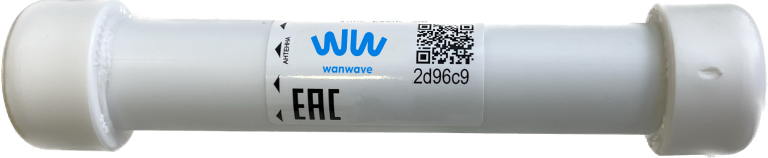

Optic Clutch Tilt Sensor
OTILS-10
The OTILS-10 monitors the tilt of optical cable joint enclosures and reports readings over wanwave LPWAN. It measures deviation from vertical with an accuracy of ±1°, helping teams identify changes in enclosure position that may need inspection. BLE supports local configuration.
Battery power and a five-year battery life support long-term monitoring without an external power connection. Its slim, IP67-rated enclosure measures 165 × 35 × 35 mm and weighs 200 g, with an operating temperature range of -40°C to +80°C.
MEASUREMENTS
Deviation from vertical
COMMUNICATION
wanwave LPWAN
POWER SUPPLY
AA battery
ENCLOSURE RATING
IP67
Applications
Technical specifications
| Model number | OTILS-10 |
|---|---|
| Measurements | Deviation from vertical |
| Measurement accuracy | Deviation from vertical: ±1° |
| Communication interface | wanwave LPWAN |
| Configuration interface | Bluetooth |
| Power supply | AA battery |
| Enclosure rating | IP67 |
| Operating conditions | -40°C to +80°C |
| Dimensions | 165 × 35 × 35 mm |
| Weight | 200 g |
| Battery life & conditions | 5 years |
Connectivity & integration
OTILS-10 transmits deviation-from-vertical readings over wanwave’s proprietary network through a compatible gateway. The gateway forwards the data to wanwave monitoring platforms or your existing IT systems. The sensor operates on battery power, and Bluetooth is used for configuration.
Documents
Product datasheet (PDF) →
