Tilt Sensor (Inclinometer)
TILS-10 / TILS-10BLE
The TILS-10 and TILS-10BLE measure tilt angle and transmit readings over wanwave LPWAN, helping teams identify changes in the position of monitored structures or equipment. Both variants provide accuracy of ±0.1°, while the TILS-10BLE adds BLE connectivity for local configuration.

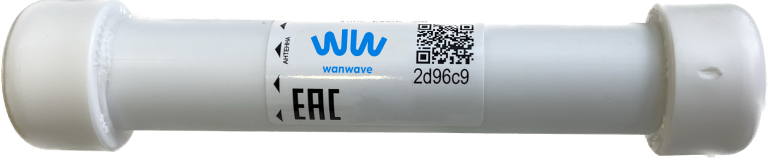

Battery power and a ten-year battery life support long-term monitoring without an external power connection. Both variants share a slim, IP68-rated enclosure measuring 125 × 30 × 30 mm and weighing 150 g, with an operating temperature range of -40°C to +80°C.
MEASUREMENTS
Tilt angle
COMMUNICATION
wanwave LPWAN
POWER SUPPLY
AA battery
ENCLOSURE RATING
IP68
Applications
Technical specifications
| Model number | TILS-10 / TILS-10BLE |
|---|---|
| Measurements | Tilt angle |
| Measurement accuracy | Tilt angle: ±0.1° |
| Communication interface | wanwave LPWAN |
| Configuration interface | Bluetooth on TILS-10BLE only |
| Power supply | AA battery |
| Enclosure rating | IP68 |
| Operating conditions | -40°C to +80°C |
| Dimensions | 125 × 30 × 30 mm |
| Weight | 150 g |
| Battery life & conditions | 10 years |
Connectivity & integration
TILS sensors transmit tilt-angle readings over wanwave’s proprietary network through a compatible gateway. The gateway forwards the data to wanwave monitoring platforms or your existing IT systems. Both models operate on battery power. Bluetooth configuration is available on the TILS-10BLE variant.
Documents
Product datasheet (PDF) →
